Atomos
Atomos Shogun Inferno 7 Rental
- 1920 x1200 Touchscreen
- 4K HDMI and 12G-SDI Inputs/Outputs, UHD 4K60p in ProRes or DNxHR
- 10-Bit FRC Monitor Processing
Overview
The Atomos Shogun Inferno 7 is a professional recording monitor that supports 4K raw footage and is equipped with quad SDI and HDMI 2.0 with no up or down scaling for true 4K recording. Thanks to firmware upgrades, you can capture raw footage from a growing list of cameras, including (but not limited to) the following:
Learn more on the Atomos site and on Apple's ProRes Raw Authorized Products list.
The Inferno features a high-resolution touchscreen with a 10-stop brightness range for accurate monitoring of log gamma footage without having to use a LUT to compress dynamic range and color space. The built-in presets will translate popular log formats from Sony, Canon, ARRI, RED, and more. For audio, the Inferno supports balanced XLR inputs with +48V phantom power via the included XLR breakout cable.
The Atomos Shogun Inferno 7 is a great system for monitoring and recording footage from a variety of sources. It can be used as a field monitor and recorder for conferences, filmmaking, performances, and vlogging.
Specs
Supported Cameras for Raw Recording:
- Sony a7S III, Sony a1, Sony FX3, Sony FX6, Sony FS Series
- Canon EOS R5, Canon C300, Canon C500
- Z Cam E2, Z Cam E2 M4, Z Cam E2 S6, Z Cam E2 F6
- Sigma fp, Sigma fp L
- Fuji GFX 100, Fuji GFX 100S
- Panasonic S1, Panasonic S1H, Panasonic S5, Panasonic GH5S, Panasonic BGH1, Panasonic EVA1
- Nikon Z7 II, Nikon Z6 II
- Olympus OM-D E-M1X, Olympus OM-D E-M1 Mark III
Learn more on the Atomos site and on Apple's ProRes Raw Authorized Products list.
Supported Resolutions:
- 5.7K DCI at 24p, 25p, 30p (Select Cameras)
- 4K DCI at 24p, 25p, 30p, 50p, 60p
- 4K UHD at 24p, 25p, 30p, 50p, 60p
- 2K at 24p, 25p, 30p, 50p, 60p, 100p, 120p
Supported Log Formats:
- Sony SLog/SLog2/Slog3
- Canon CLog/CLog 2/CLog3
- ARRI Log C
- Panasonic VLog
- JVC JLog
- RED LogFilm
- Fuji FLog
- Nikon N-Log
- Olympus OM Log
- Leica L Log
Ports & I/O:
- HDMI (Type A) 2.0 In/Out (Supports Up to 4K)
- BNC In/Out (4 x 3G HD-SD, Quadlink)
- 2 x XLR Analogue Input/Output
- 3.5 Headphone
- 2.5mm LANC
- Genlock Input/Output
Screen Resolution: 1920 x 1200, 7" Touchscreen LCD
Video Aspect Ratio: Native - 16:9
Memory Compatibility: 2.5" SSD (Cards Not Included)
Dimensions: 8.4" x 5" x 1.8"
Weight: 2.5 lbs

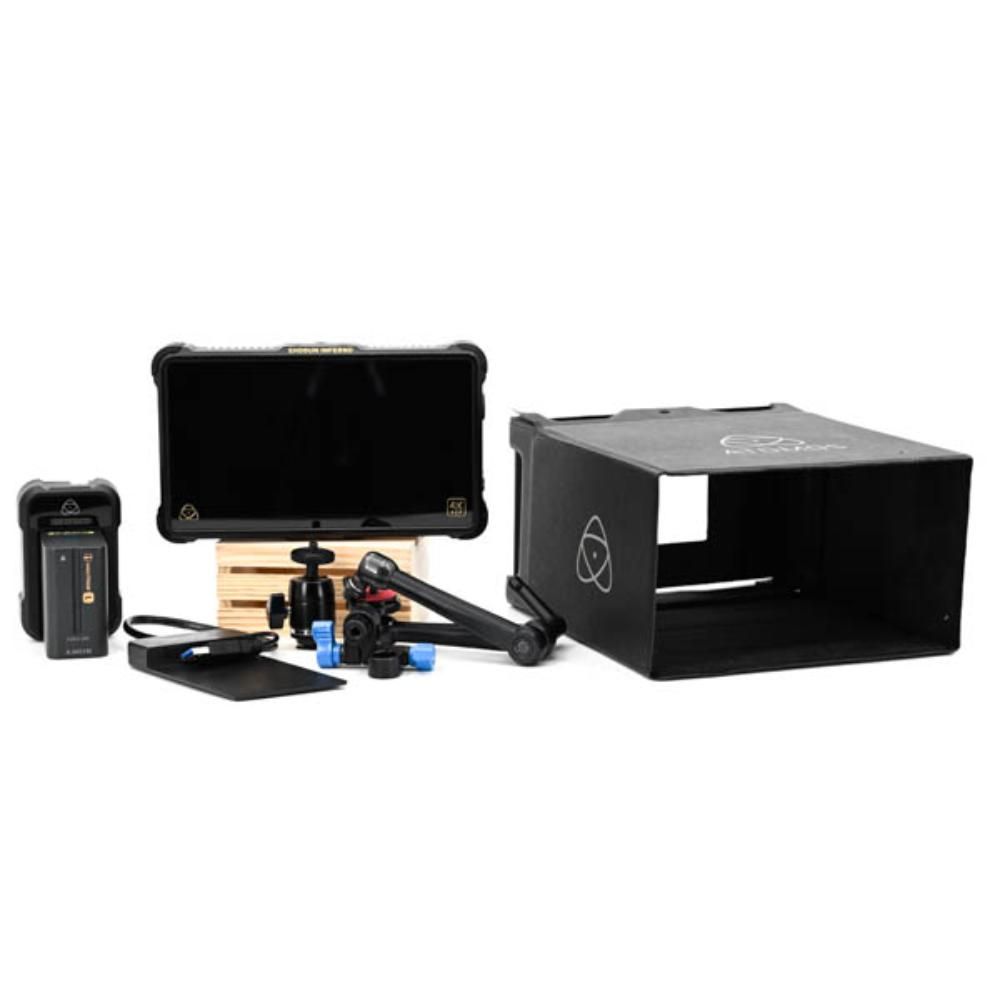

Rental Includes
- Atomos Shogun Inferno 7" 4K SDI/HDMI Recording Monitor
- Redrock microMount
- Micro Ball Head Shoe Mount
- Noga Cine Arm
- Long Sun Hood
- Short Sun Hood
- 2 AC Power Adapters
- Sony NP-F970 Battery
- Battery Charger
- 2 Master Caddy cases for HDD/SSD with 8 Screws (Drives Not Included)
- USB 3.0 SSD Slim Card Reader
- Coiled D-Tap DC Power Cable
- LEMO Type to XLR Breakout Cable
- Standard Cable Pack (Includes the Following by Default, Even if Item Doesn't Support All of These Ports: 3' HDMI to HDMI Cable, 3' Mini HDMI to HDMI Cable, 3' Micro HDMI to HDMI Cable, Right Angle HDMI to HDMI Adapter, Right Angle Mini HDMI to HDMI Adapter, 3' BNC to BNC Cable)
- 2 x 1/4"-20 Thumbscrews
- Carrying Case
